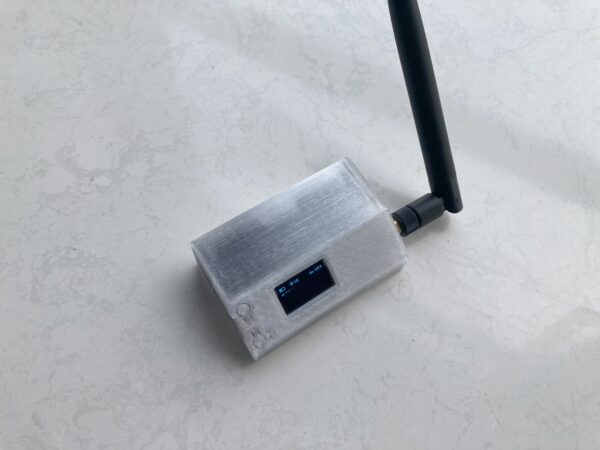

A self-contained Heltec V3.1 enclosure for portable LoRa builds
Turn a Heltec WiFi LoRa 32 V3.1 board and a standard 18650 holder into a compact handheld node. The revised snap-on geometry improves panel retention and exposes the OLED, controls, USB-C and antenna connection.
Functional design
- Exact source geometry for Heltec WiFi LoRa 32 V3.1
- Space for a 78 × 21 × 22 mm 18650 holder with battery installed
- OLED window plus user/reset-button access
- Antenna and USB-C access
- Two-piece snap-on construction
Materials and colors
Black and White are printed in PLA Tough+ for added durability. Orange, Blue, Green, Red, Gray, Purple and Yellow are printed in standard PLA.
Need another color? Select Custom Color Request — 3+ Only and order at least three of this case. Availability will be confirmed before production; uncommon colors may add processing time.
Compatibility — read before ordering
Fits the Heltec WiFi LoRa 32 V3.1 configuration described by the source designer. Confirm the board revision and battery-holder dimensions; it is not sold as a universal Heltec V4, Wireless Tracker or other LoRa-board case.
What is included
Two printed enclosure pieces only. Heltec board, 18650 cell, battery holder, antenna, wiring and all electronics are not included.
USB and radio caution: Meshtastic documentation notes that the V3/V3.1 CP2102 USB bridge lacks ESD protection and recommends care at the USB-C port; it also notes possible battery-charging issues with USB-C-to-USB-C cables and recommends USB-A-to-USB-C. Follow Heltec/Meshtastic power, battery and antenna guidance.
Made by GearTechOutpost
Each case is printed to order. Minor layer lines, seams and small surface variations are normal characteristics of functional FDM 3D printing.
Designer, license and gallery credit
Enclosure model based on “Heltec LoRa 32 V3.1 Case – 18650 Ver.2” by HighDoping, used under CC BY-SA 4.0. Printed and sold by GearTechOutpost. Production geometry is used without dimensional changes; where a source 3MF was converted to STL, geometry and millimeter scale were preserved. The web-viewer GLB is a format conversion arranged as an exploded preview. The GLB adaptation is offered under the same CC BY-SA 4.0 license.
Gallery credit: Source photographs and renders by HighDoping, from the linked model page and used under the same displayed license. WordPress may resize the files for web delivery.
Raspberry Pi, Heltec, Wemos, LOLIN, WLED, NodeMCU, Seeed Studio, Adafruit, Klipper, LilyGO, M5Stack, Home Assistant and Multiboard and related marks are used only to identify compatibility. GearTechOutpost is not affiliated with or endorsed by those projects or manufacturers.
