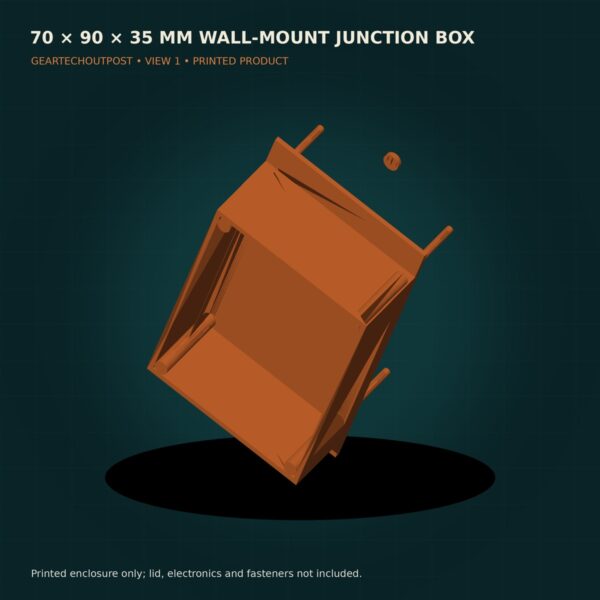

  1. 70 × 90 × 35 mm Open-Top Wall-Mount Electronics Box product view 1

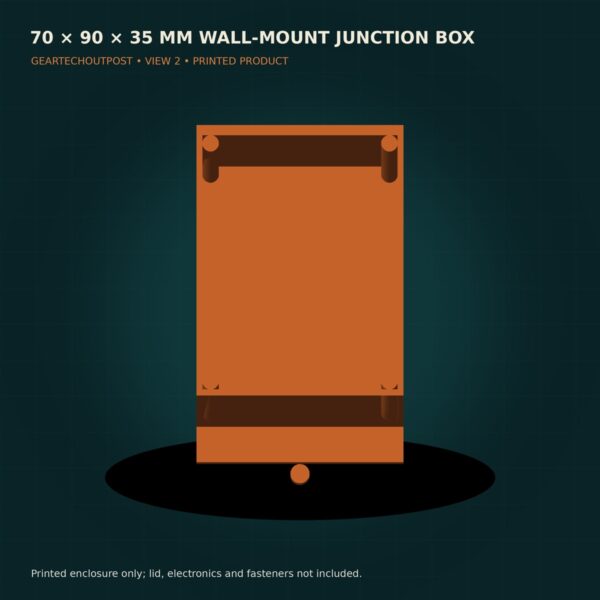

  2. 70 × 90 × 35 mm Open-Top Wall-Mount Electronics Box product view 2

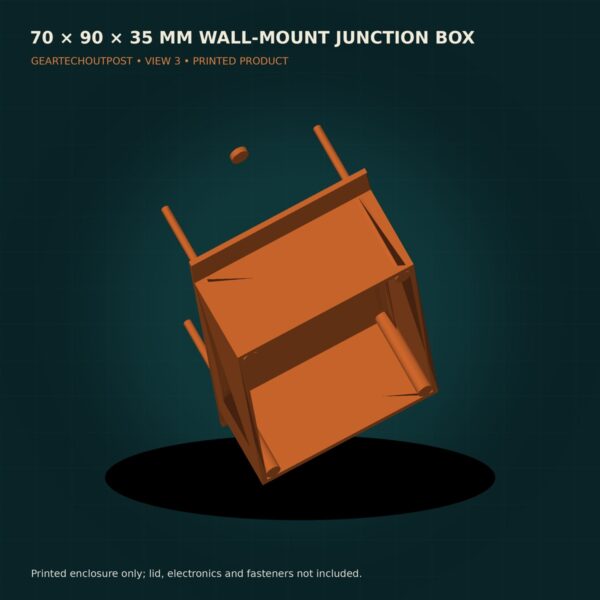

  3. 70 × 90 × 35 mm Open-Top Wall-Mount Electronics Box product view 3

70 × 90 × 35 mm Open-Top Wall-Mount Electronics Box

$18.99

An open-top printed electronics box with 70 × 90 × 35 mm body, internal screw bosses and external wall-mount flanges.

Custom colors require at least 3 cases of the same variation and are subject to filament availability. We will contact you before production if the requested color cannot be sourced.
↻ Explore the interactive 3D product view
SKU: GTO-JBOX-709035 Categories: , Tags: , , ,

A sturdy open project box for wall-mounted electronics

This physical print of GN3D Studio’s CadQuery casing provides an open-top shell, four internal bosses and two external mounting ears.

  • 70 × 90 × 35 mm nominal body
  • 2 mm walls
  • Four internal bosses with insert-sized holes
  • Two external mounting holes

Included

One printed open-top box. A lid is not part of this design. Electronics, threaded inserts and mounting hardware are not included. Indoor use only; not waterproof or electrical-code rated.

Weight 0.3500 lbs
Dimensions 7.0000 × 5.0000 × 2.5000 in
Color

Black — PLA Tough+, White — PLA Tough+, Orange — PLA, Blue — PLA, Green — PLA, Red — PLA, Gray — PLA, Purple — PLA, Yellow — PLA, Custom Color Request — 3+ Only
