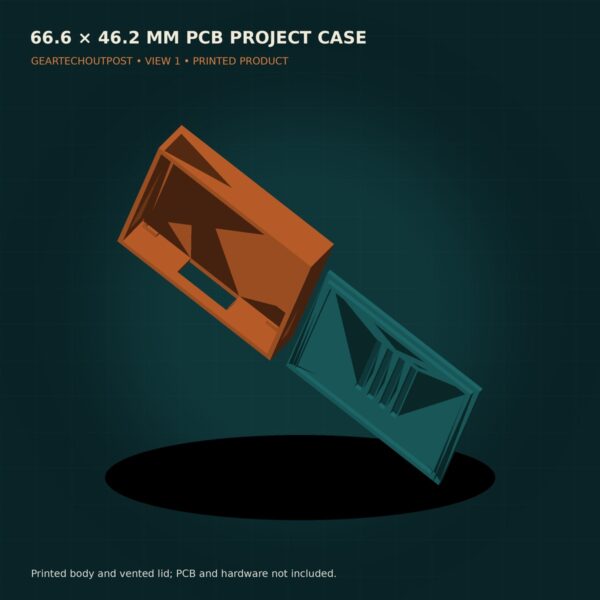

66.6 × 46.2 mm PCB Project Case — Vented Lid product view 1

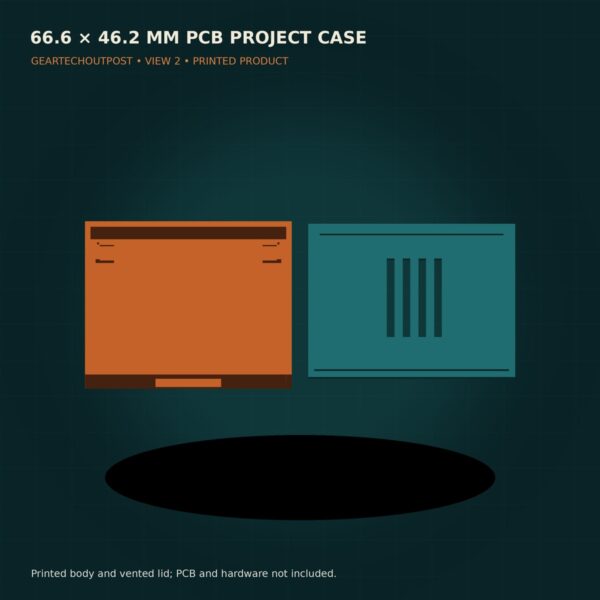

66.6 × 46.2 mm PCB Project Case — Vented Lid product view 2

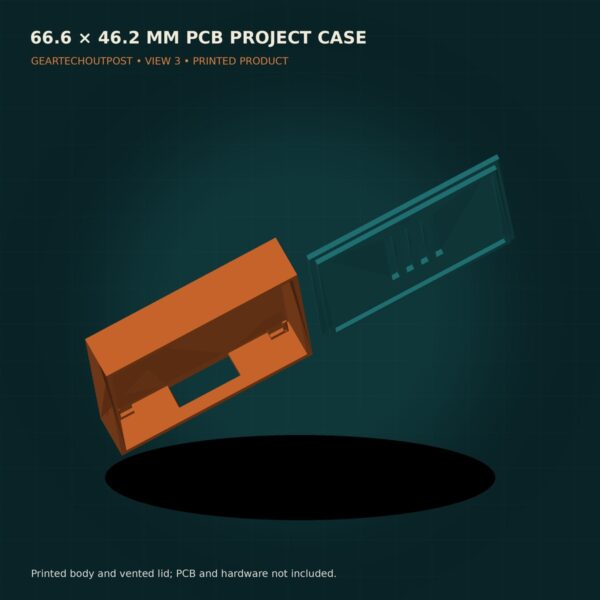

66.6 × 46.2 mm PCB Project Case — Vented Lid product view 3

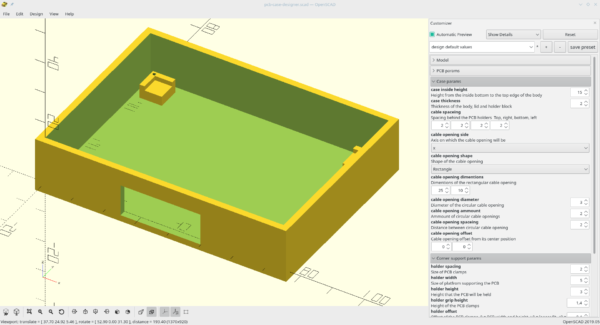

OpenSCAD view of a PCB case body generated by pcb-case-designer
OpenSCAD view of a lid generated by pcb-case-designer
  1. 66.6 × 46.2 mm PCB Project Case — Vented Lid product view 1
  2. 66.6 × 46.2 mm PCB Project Case — Vented Lid product view 2
  3. 66.6 × 46.2 mm PCB Project Case — Vented Lid product view 3
  4. OpenSCAD view of a PCB case body generated by pcb-case-designer
  5. OpenSCAD view of a lid generated by pcb-case-designer

66.6 × 46.2 mm PCB Project Case — Vented Lid

$16.99

A two-piece printed project enclosure with corner PCB grips, cable opening and a removable vented lid.

Custom colors require at least 3 cases of the same variation and are subject to filament availability. We will contact you before production if the requested color cannot be sourced.
↻ Explore the interactive 3D product view
SKU: GTO-PCBCASE-6646 Categories: , Tags: , , ,

Protect a 66.6 × 46.2 mm board without hiding airflow

The configurable BMatrix enclosure is prepared here as a physical body-and-lid set for a nominal 66.6 × 46.2 mm PCB.

  • Body plus removable vented lid
  • Corner PCB support and grip features
  • 25 × 10 mm rectangular cable opening
  • Approximately 15 mm internal height

Included

One printed case body and one printed lid. PCB, electronics and screws are not included. Measure tall components and connector positions before ordering.

Weight 0.2500 lbs
Dimensions 6.0000 × 4.5000 × 2.0000 in
Color

Black — PLA Tough+, White — PLA Tough+, Orange — PLA, Blue — PLA, Green — PLA, Red — PLA, Gray — PLA, Purple — PLA, Yellow — PLA, Custom Color Request — 3+ Only
